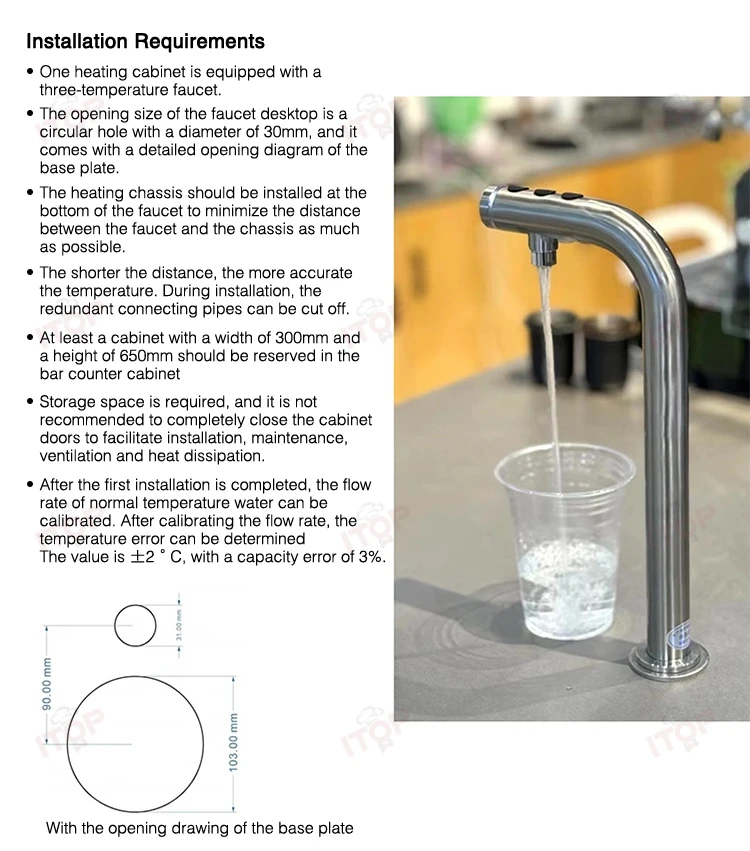

Installation Requirements

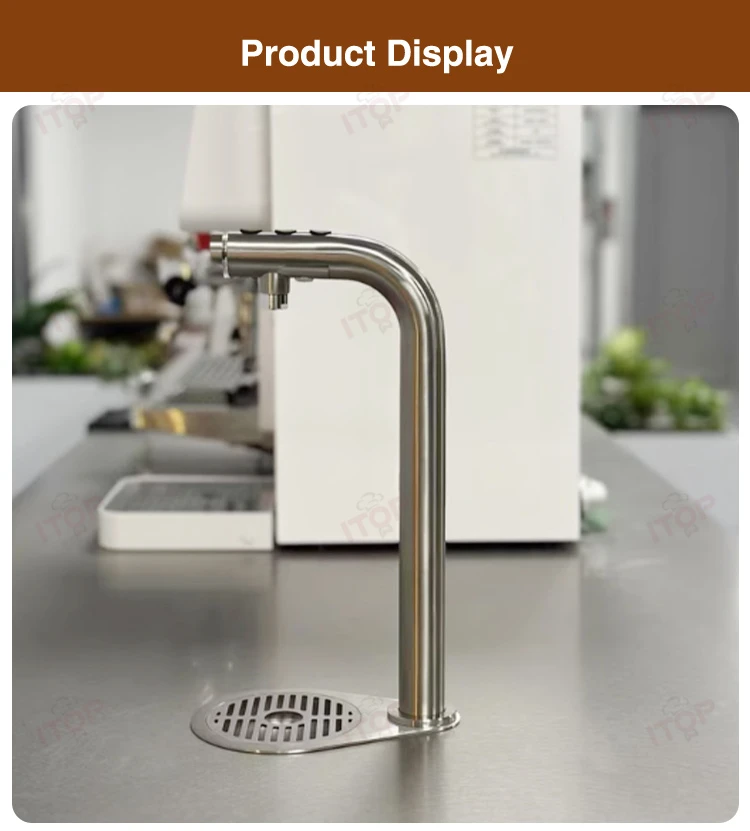

One heating cabinet is equipped with a three-temperature faucet.
The opening size of the faucet desktop is a circular hole with a diameter of 30mm, and it comes with a detailed opening diagram of the base plate.
The heating chassis should be installed at the bottom of the faucet to minimize the distance between the faucet and the chassis as much as possible.
The shorter the distance, the more accurate the temperature. During installation, the redundant connecting pipes can be cut off.
At least a cabinet with a width of 300mm and a height of 650mm should be reserved in the bar counter cabinetStorage space is required, and it is not recommended to completely close the cabinet doors to facilitate installation, maintenance, ventilation and heat dissipation.
After the first installation is completed, the flow rate of normal temperature water can be calibrated. After calibrating the flow rate, the temperature error can be determined
The value is ±2°C, with a capacity error of 3%.
